K-LAM

Kornic Laser Ablation Machining

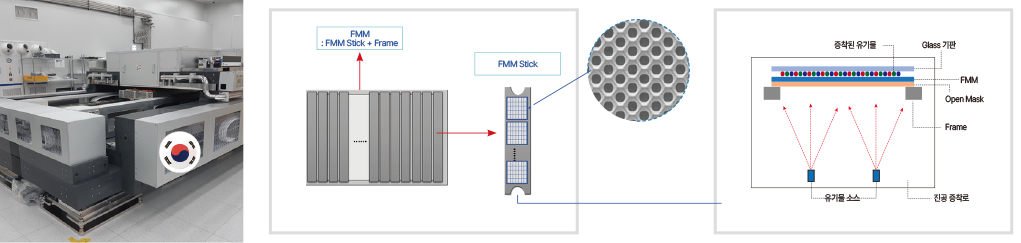

It has high precision system (nm) design technology for semiconductor/display
FMM manufacturing that requires high precision. It consists of a high precision air
slide bearing stage, an environmental chamber to maintain optimal processing
environment, and a SW to operate it.

Product
Features

1 Manufacture of Laser Mask for Ultra-fine Pixel such as AR and VR
2 Structural and system design through simulation
Simulation
Robot Behavior
Analysis
Structural, heat, heat,
heat analysis
Vibration analysis
3 Environmental control technology for maintaining precision

Temperature controlled precision environment chamber

Long-term laser
microprocessing
Stage Maintain temperature
within 0.1 degrees Celsius
Application of 0.03 degree
temperature control
technology
4 Control technology for precision driving

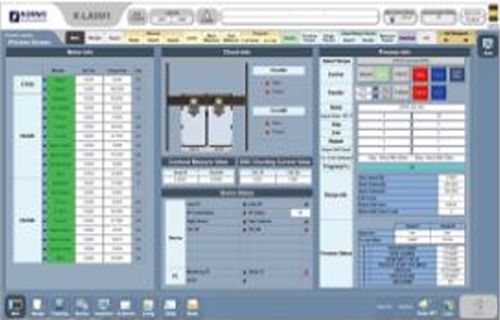

Precision Stage Control GUI
Structural Stability of Stage with nm Precision Using EasyCluster Platform and Precision Control of Each Element
5 laser process using optical technology

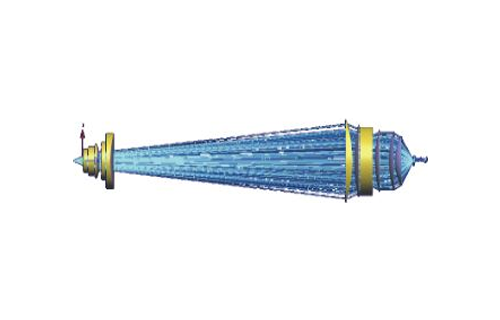

Laser Processing Lens Design Schematic Diagram
Optimal laser path and laser beam implementation
