Product
Features
Proven safety
Reliability proven reliability in semiconductor and display Manager customer production
Integrated control possible
Integrated control of FAB automation
Convenient and secure
SW maintenance
Convenient and secure SW maintenance with Multi Process
C, C++, C# Support
Application program language C, C++, C# support
Apply various automation facility controls
It is possible to apply various automation facilities control facilities in MS Windows OS environment
Product
function
-

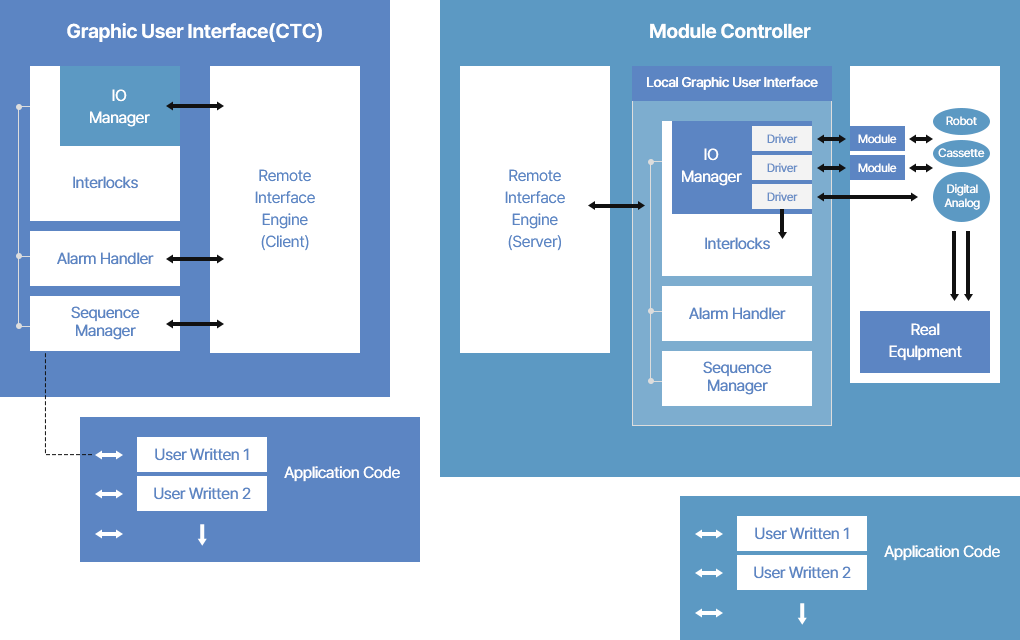

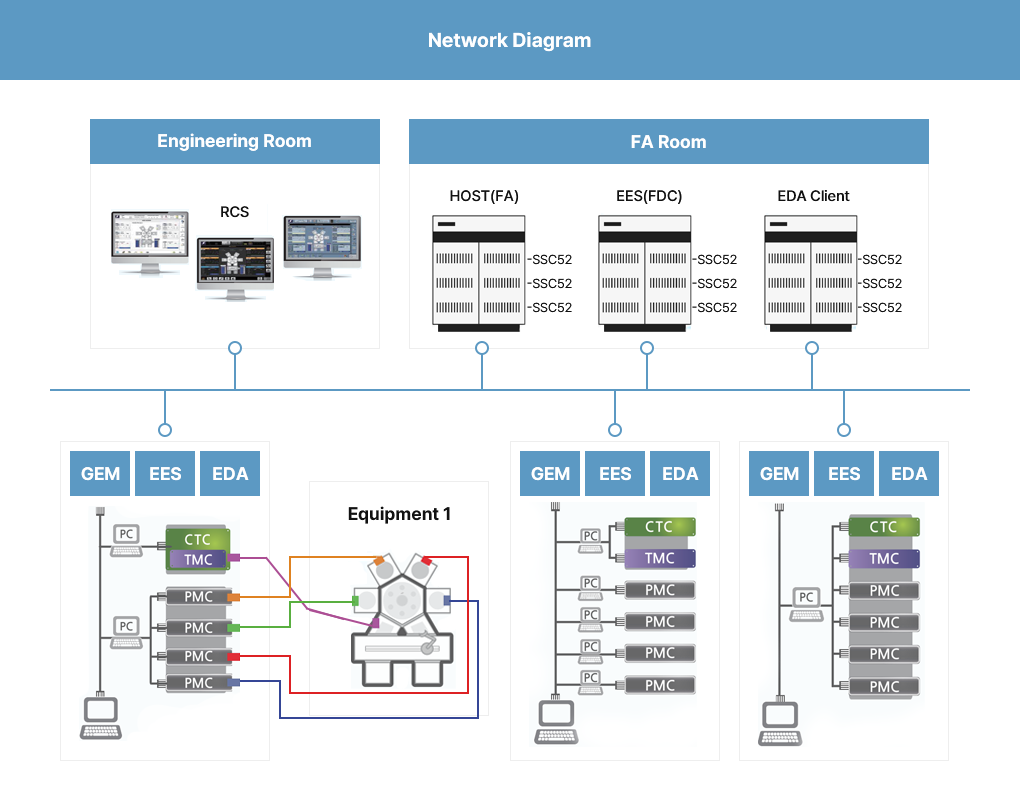

EasyCTC is controlling all equipment integrated, including Schuester, and EasyTMC is controlled and EasyPMC is controlled
-
EasyFAS Package은 Fab. Responsible for automation and providing solutions based on SECS-II and HSMS, which are the criteria for automation.
Internal Data Flow
EasyCluster
Product
1 EasyCluster
EasyRCS, EasyGEM, EasyCTC, EasyTMC, EasyPMC.
Control process devices, provide control solutions.
2 EDA
Technology to increase the effectiveness of data to
aid decision-making at the production site.
Provide data services to optimize production processes
3 EasyFAS Package
Automation programs for fast and easy development
to match various line specifications for each end user,
such as LCD, LED, AMOLED, SolarCell, etc.
4 EasyRCS
Equipment control can be owned and maintained at a low cost.
Remote control of up to 256 equipment using Option
5 EasyEMI
Software EEMI is software that enables combination of Process
Module software and EasyC clusters developed in other languages
developed in other languages
6 MFI
Interface Solution provides a way for the user to create
Scheduler Flow that changes with the equipment
Software Requirements (Based on V3.8 Engine)
Software Requirements
-
Operating System
Windows 10
Supported Language: English, Japanese, Chinese, Korean, •••(Accoding to OS)
-
S/W Development
ToolsMS Visual Studio series( ~2017)
Windows Paint or Adobe Photoshop
-
I / 0 Module
DeviceNet Serial, PLC, Direct 1 / 0, EtherCAT
Hardware Requirements
| Minimum Requirements | Recommended Requirements | |
|---|---|---|
| CPU | 2GHz | 3GHz or higher |
| Memory | 8GB | 16GB or higher |
| HDD | 256GB | 512GB or higher |
| VGA | 1024 x 768 | 1280 x 1024 or higher |
Advantage
Easy to build a control system hardware
This software does not need any proprietary hardware The PC and I/O devises can be obtained anywhere.
Easy to develop application
The well-prepared framework and its intuitive tool allow engineers to develop to implement their own application and make it in the shortest from Stand-Alone to Multi-Cluster type and In-Line systems to FPD equipment.
Easy to maintain
An application can be easily modified without rebooting while system still alive.
Easy to distribute/ combine hardware
The powerful IMC function enable you to distribute a single application to multiple over the network and vice versa immediately according to the complexity of the equipment.
Easy to reuse
Once an application was completed, it takes much shorter time to develop next by reusing the most of the codes.
Easy to operate
The graphic user interface and simulated keyboard makes it easy to operate in the field.
Easy to own
The control solution can be provided in a variety forms, from turnkeydevelopment to infinity license.
Easy to get skilled engineer
The use of most popular hardware and software environment makes it easy to their skilled engineer.
be easy to expand
Flexible connectivity with heterogeneous SWs developed separately from EasyCluster.
Development
Support Tool and
Delivery Manual
1 Delivery Tool

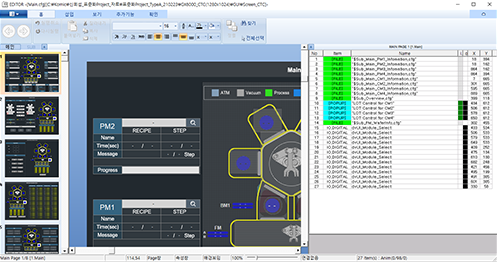

GUI_Editor3 (v3.8 Engine)
Easy and fast GUI editing
2 Manual
Cluster Tool Interface Guide
Control Integration Management System
Cims Library Reference
EasyCluster Utility
