Product
Features
Fast Transfer and Multiple Access
Fast transfer and multiple connections to each module
User Convenience
User convenience (Open Library support for development convenience, Visual UI support)
Development convenience
Easy Cluster user development convenience ( Minimize development period in conjunction with EasyFASEDA)
EDA Client Interworking
EDA Client Interworking Test with EasySIM+
Product
function
-
Interface-A, Freeze Version 2(0710) Support
-
Send XML Scma to SOAP / HTTP-based data transmission
-
Feature Support for Equipment Model Configuration (Easy Designer)
-
Multi-interface (multi-client) support for equipment data collection
-
Support features by functionality by functionality
-
Condition-based Trace Support

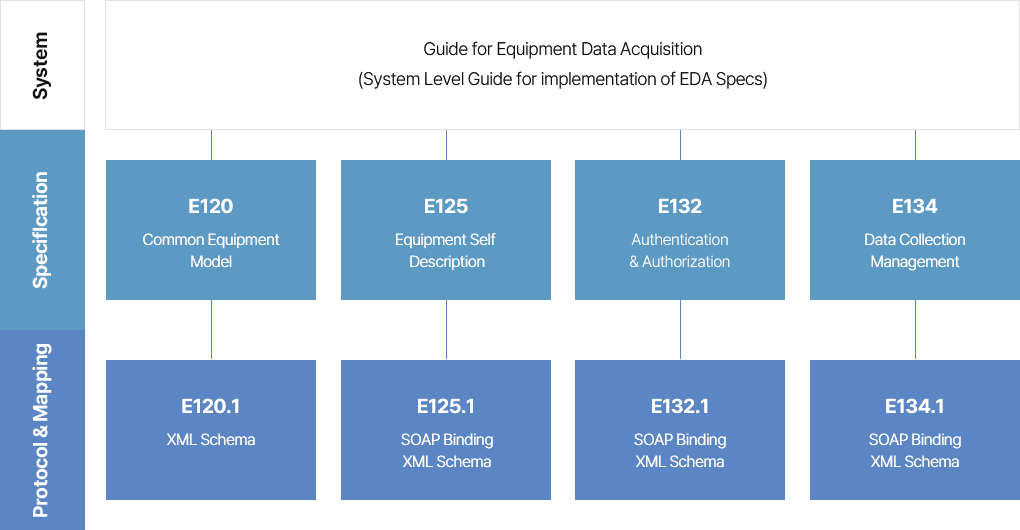

SEMI
Standard Response
EasyEDA Package SEMI Standard Response
Architecture
EasyEDA Package Architecture
The modules constituting the EasyEDA are as follows.
Development Support Tool and Delivery Manual

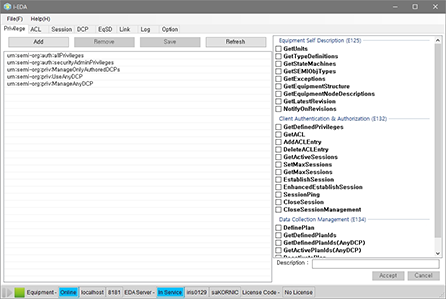

1 EasyEDA Server
Metadata and Access Rights (ACL) management
Save Data Collection Plan (DCP)
Provide users with a web service interface
Performs warnings, etc. when equipment is overloaded.
Ability to manage incoming data from equipment programs

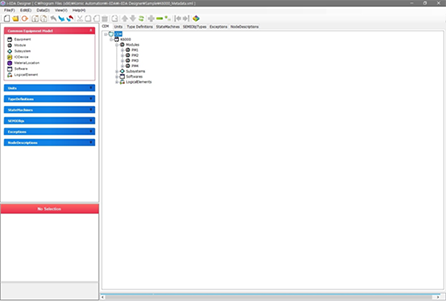

2 EasyEDA Designer
Tools for modeling equipment structure in which is
described in the form of the SEMI standard
Common Equipment Model (CEM), units, type definitions,
state systems, SEM objects, exceptions, node descriptions, etc.

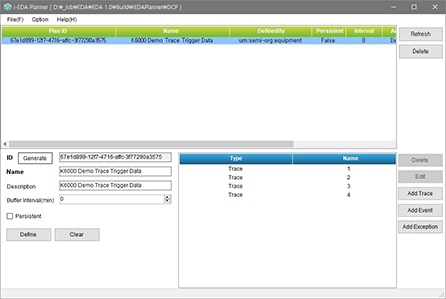

3 EasyEDA Planner
Tools for creating only built-in DCP that the equipment has
during the Data Collection Plan that collects information about
parameters, events, and exceptions present in the equipment.
Trace Request, Event Request, Exception Request

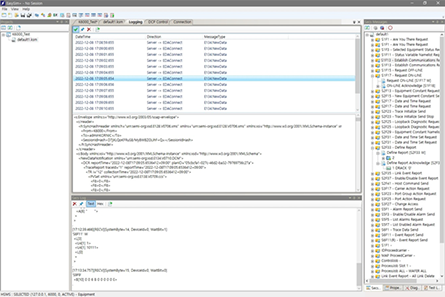

4 EasySIM+
Communication connection with Freeze II (0710) version
EDA program and support for EDA Message testing
HSMS communication connection with equipment
program and SECS Message test support
5 Sample Program
Provides an API for transmitting data such as parameters,
events, and exceptions of equipment control software to EasyEDA.
C, MFC, C# Sample Program Offerings
6 Delivery Manual
User Operation Manual for EasyEDA
User Operation Manual for EasyEDA Designer
User Operation Manual for EasyEDA Planner
User Operation Manual for EasySIM+
Library Reference Document for EasyEDA User Interface
Library Reference Manual for EasyEDA Equipment SDK for C
Library Reference Manual for EasyEDA Equipment SDK for C++
Library Reference Manual for EasyEDA Equipment SDK for C#
