Alcatel -Lucent

Major carriers, enterprise customers to build next-generation networks

Contribute to building next-generation networks by supplying end-to-end solutions
such as wireless networks, optical transmission, IP solutions, access systems,
software, and services to major telecom operators and corporate customers,
including SK Telecom and KT

Product
Features

SmartTrchitectures Function

No DNS response timeout

Support for myriad servers and high scalability

Real-time transactional analysis and signature generation

DNS attack defense

Highest robust
DHCP services

Protect against DHCP high availability and service attacks

Unmanageable, automated setup, instant activation

Deploying Between Remote Sites

Managing incomparable
IP addresses

Overall Appliance with global IP address management

Efficient IP Solid Server

Reduce total cost of ownership (TC0) by up to 75%

Enhanced automation

Increased reliability and security

Threat Prediction

Enabling IPv6 and the Cloud

Road-Map and
Key Lineups

    • - L2 Access Switch
    • - L3 agg / Core Switch
    • - IDC / Metro Switch
    • - WLAN
L2 Access Switch
  1. 1

    Choice and Best Price/Effective Features

  2. 2

    Eco - Friendly

  3. 3

    Alcatel - Lucent Operating System(AOS)

  4. 4

    Large Enterprise / Small Business

OS2360 / OS2260 Series

OS6860E

OS6560 Series

L3 agg / Core Switch
  1. 1

    Choice and Best Price/Effective Features

  2. 2

    Eco - Friendly

  3. 3

    Alcatel - Lucent Operating System(AOS)

  4. 4

    Large Enterprise / Small Business

OS6855 Series

OS6860 Series

OS6900 Series

Business Switch Types and Features
  1. 1

    vibrating/electromagnetic/temperature-variable environments

  2. 2

    Fanless Products

  3. 3

    model: OS6855-U10/OS6855-14/OS6855-24

  4. 4

    OS6855-U24X: 22xSFP+2combo (RJ45/SFP)+2x10G

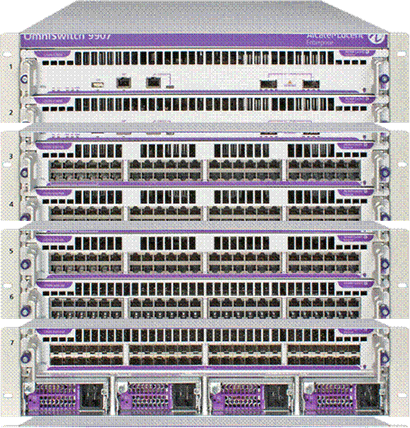

    Backbone Switch - 0S9907

    System Capacity

    Provides up to 25.6 Tbps backplane
    (w/ 2 x CFM 2)

    Up to 9 slots
    (CMM x 2, NI only x 5, fabric x2)

    Redundancy of key
    components

    Provides chassis/management module (CMM) redundancy

    Provides power/FAN redundancy

    Provide fabric module redundancy (rear)

    All control units/power units/FAN trays and
    Provide hot swap for network cards

    Delivering high performance

    Provide Wire Rate for All Ports

    Non-Blocking Architecture

    Up to 960 Gbps per slot (Full Dupex)
    Switching Capacity - 25.6Tbps/6.19Bpps (2 x OS9907-CFM2) - 25.6Tbps/15.1Bpps (2 x OS9907-CFM2) - 5.12Tbps/3.8Bpps (2 x OS9907-CFM)

    L3 feature support

    Built-in advanced routing capabilities
    (RIP/OSPFv2v3/BGP4/4+)

    Provides multicast routing capabilities
    (IGMPv1/2/4,PIM-SM/DM/SSM, BSR)

    Provides virtual router functionality (m-VRF)

    Provide stability

    Distributed Processing Architecture
    (Provide non-disruptive service in case of chassis management module failure)

    Provides Virtual Cassis capabilities (virtualization)

    IEEE 802.1d/s/w STP support

    Standard-based IEEE 802.ad LACP support

    Enhanced security features

    Security Conformity Support / Have International CC Certification

    Convenient management

    Console/CLI/WEB/SNMPv1/v2/v3
    RMON/mirroring (port/VLAN based, etc.)



    etc.

    IEEE 802.3af/at and HPoE support
    10,000W or more PoE budget



    • OS9907-CFM2 Overview

    • New high-performance, high-capacity fabric module for OS9907

    • 6.4 Tbps switching capacity per CFM2 sheet

      • 24 x 10G-BaseT, 2 x 10G SFP+ VC/Uplinks and 2 x QSFP28 ports
      • QSFP28 ports can operate at 100/40/4x25/4x10 GE speeds

    • Coming soon 8.9R1 - Q3 2022

    * Caution: CFM and CFM2 cannot be mixed in OS9907 Classis
    OS99-XNI-U24
    OS99-XNI-P24Z8
    OS99-XNI-U24
    OS99-XNI-P24Z8

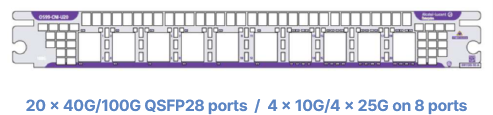

    OS99-CNI-U20
    OmniAccess WLAN

    OmniAccess® Stellar Access Point Lineup

    AP 1301

    AP 1311

    AP 1301H

    AP 1321/1322

    AP 1331

    AP 1351

    AP 1362-T

    AP 1451
